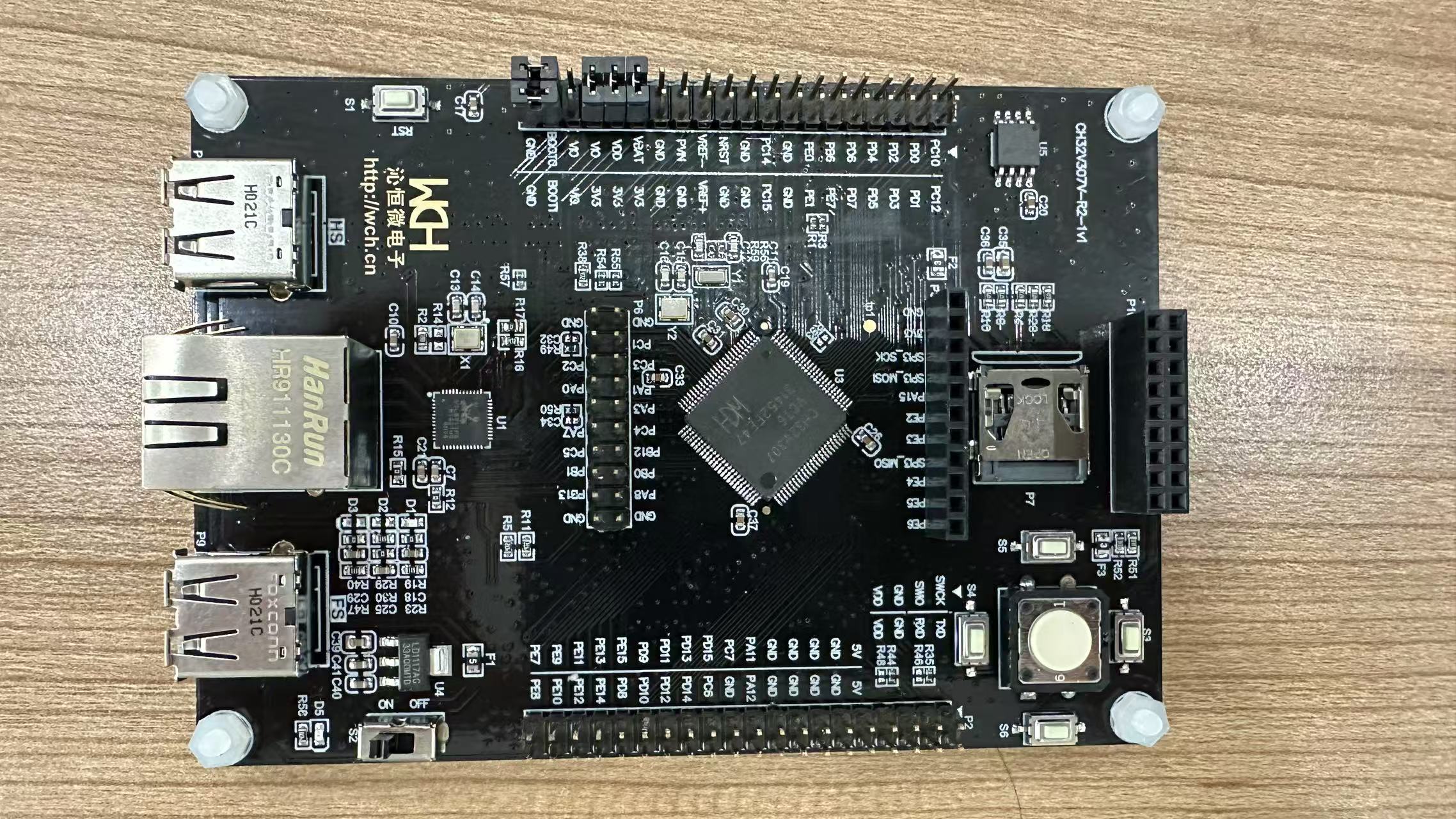

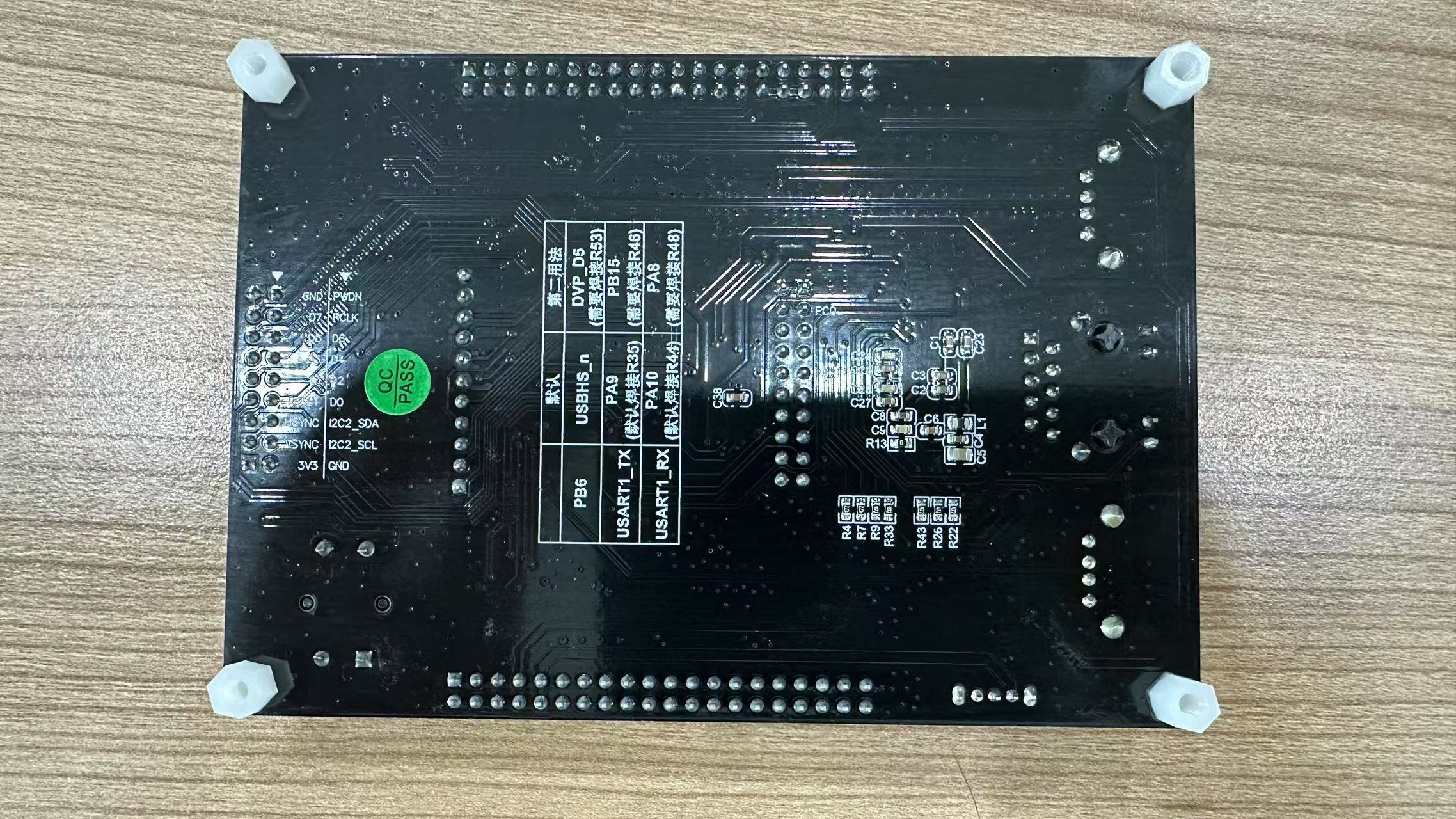

9. WCH CH32V307V-EVT-R2

概述

---

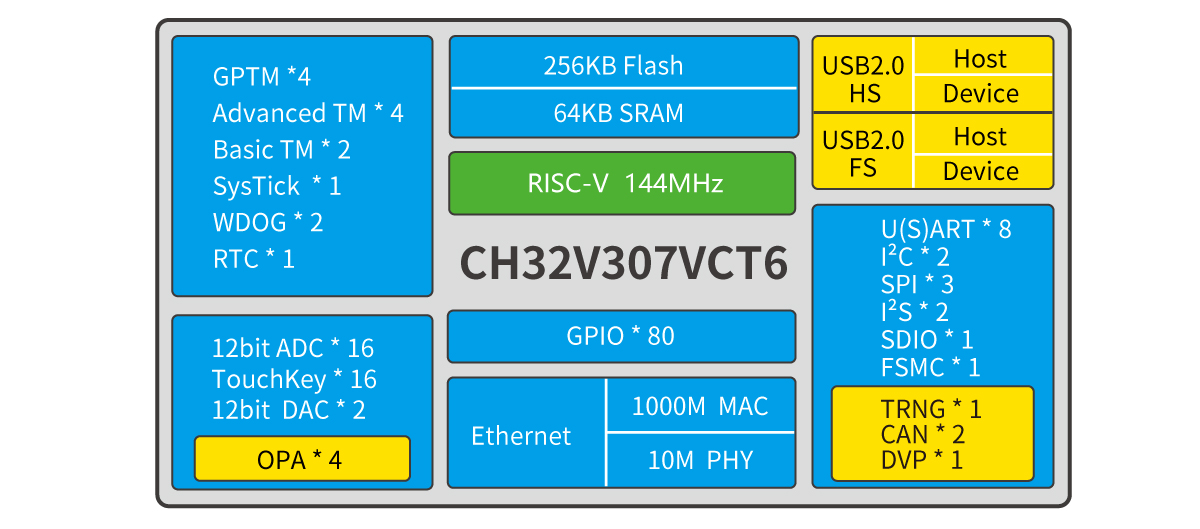

System Block Diagram

Features

• RISC-V4F processor, max 144MHz system clock frequency;

• Single-cycle multiplication and hardware division, hardware float point unit (FPU) ;

• 64KB SRAM，256KB Flash;

• Supply voltage: 2.5V/3.3V, GPIO unit is supplied independently;

• Multiple low-power modes: sleep/stop/standby;

• Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD);

• 2 general DMA controllers, 18 channels in total;

• 4 amplifiers;

• Single true random number generator (TRNG)

• 2 x 12-bit DAC;

• 2-unit 16-channel 12-bit ADC, 16-channel TouchKey;

• 10 timers;

• USB2.0 full-speed OTG interface;

• USB2.0 high-speed host/device interface (built-in 480Mbps PHY)

• 3 USARTs, 5 UARTs;

• 2 CAN interfaces (2.0B active);

• SDIO interface, FSMC interface, DVP;

• 2 x I2C, 3 x SPI, 2 x IIS;

• 80 I/O ports, can be mapped to 16 external interrupts;

• CRC calculation unit, 96-bit unique chip ID;

• Serial 2-wire debug interface;

• Packages: LQFP64M, LQFP100.

官网链接:'https://www.wch-ic.com/products/productsCenter/mcuInterface?categoryId=70'

参考链接:'https://github.com/openwch/ch32v307'
